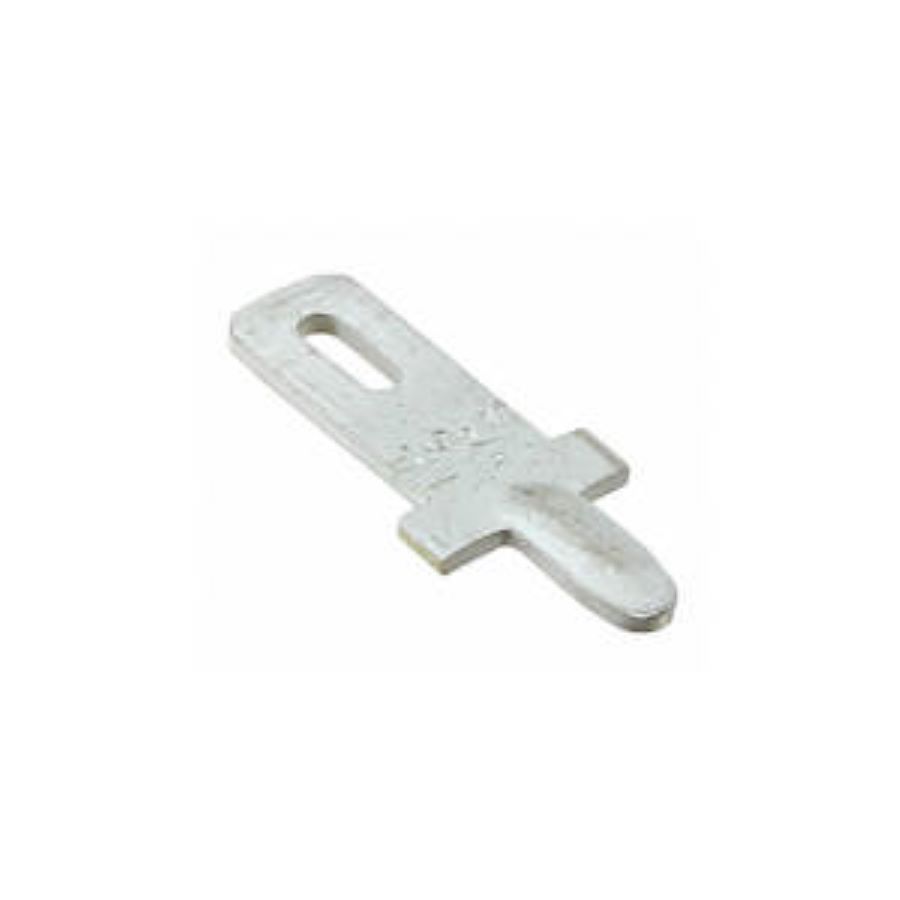

735187-2
Manufacturer:
TE Connectivity
Mfr.Part #:
735187-2
Datasheet:
Description:
Terminals Through Hole Male
| Parameter | Value |
|---|---|
| Length | 12.4 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 8.6 mm |
| Material | Brass |
| Packaging | Bulk |
| Depth | 4.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Tab |
| Current Rating | 20 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Male |
| Number of Contacts | 1 |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 2.794 mm |
| Hole Diameter | 1.397 mm |
| Insulation | Non-Insulated |
| Plating | Tin |
| Termination Style | Solder |
| Body Plating | Tin |
| Mating Tab Width | 2.794 mm |
| Tab Thickness | 508 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Stud Size | 2.79 mm x 0.51 mm |
Stock: 9959
Distributors
pcbx
pcbxUnit Price$0.09404
Ext.Price$0.09404
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09404 | $0.09404 |
| 10 | $0.08011 | $0.80110 |
| 50 | $0.07393 | $3.69650 |
| 100 | $0.06822 | $6.82200 |
| 500 | $0.05881 | $29.40500 |
| 1000 | $0.05070 | $50.70000 |
| 3000 | $0.04853 | $145.59000 |
| 5000 | $0.04645 | $232.25000 |
| 10000 | $0.04446 | $444.60000 |
